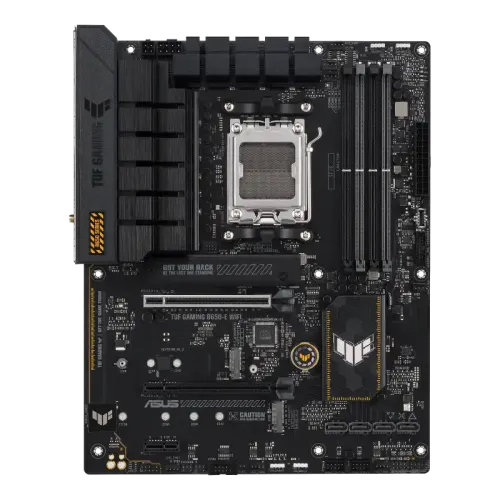

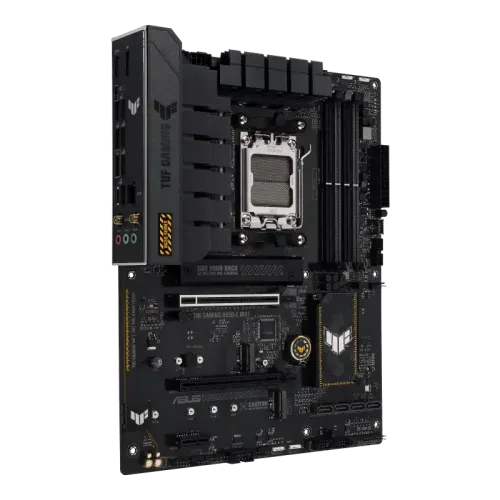

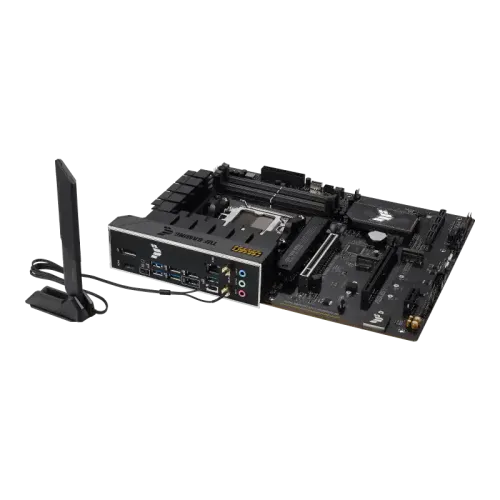

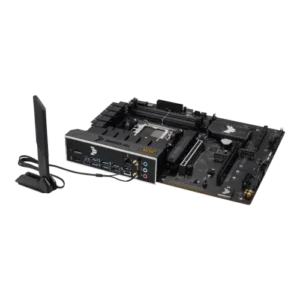

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard

Original price was: ৳ 33,090.Current price is: ৳ 28,500.

Key Features

Model: TUF GAMING B650-E WIFI
Supported CPU: Ryzen 9000, 8000 & 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 192GB, 8000+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 1 x 2.5Gb Ethernet, Wi-Fi 6E

Chat Through WhatsApp

Category: ASUS (AMD)

Specification

Basic Information
Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B650
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots
PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode) 1 x PCIe 4.0/3.0 x1 slots
M.2 Socket	Supports 3 x M.2 slots
Memory
Type	DDR5
Slots	4 DIMMs
Supported Memory	8000+ OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II
Maximum Memory	192GB
Graphics
Graphics	* Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. * VGA resolution support depends on processors’ or graphic cards’ resolution.
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 8 ports) 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication module	Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	5 x Audio jacks
Internal I/O Ports	Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button
Others
Special Features	ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Aura RGB header(s) – Addressable Gen 2 header(s)
Bundled Software	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 Years
