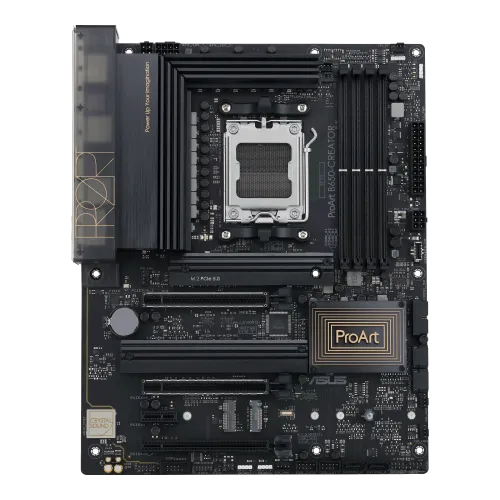

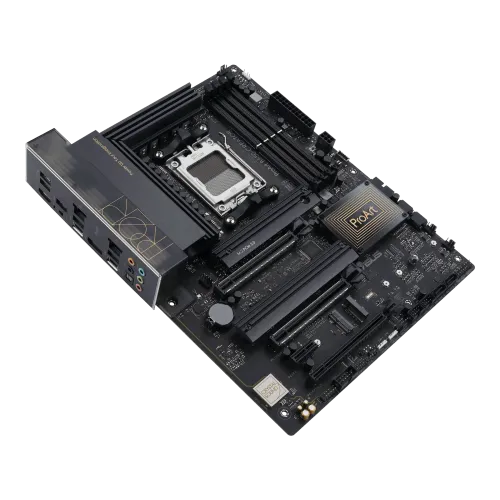

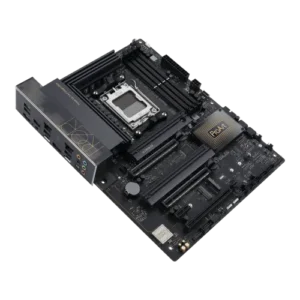

ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard

Original price was: ৳ 44,000.Current price is: ৳ 39,999.

Key Features

Model: ProArt B650-CREATOR
Supported CPU: Ryzen 7000/ 8000 Series Processors for Socket AM5
Supported Memory: 4 x DIMM slots, Max. 192GB, DDR5 6400+(OC)
Graphics Output: 1 x HDMI port, 1 x USB Type-C
Features: 1 x Realtek 2.5Gb Ethernet

Chat Through WhatsApp

Category: ASUS (AMD)

Specification

Basic Information
Supported CPU	AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors
Chipset	AMD B650
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Power pre-regulator reduces power input noise to ensure consistent performance – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit
Expansion Slots
PCI	AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. * PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. AMD Ryzen 7000 Series Desktop Processors 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
M.2 Socket	3 x M.2 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory	192GB
Graphics
Graphics	1 x HDMITM port 1 x USB Type-C port supports DisplayPort output* * Graphics specifications may vary between CPU types. Supports 4K@60Hz as specified in HDMI 2.1. * Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. 1 x HDMI port 1 x USB Type-C port supports DisplayPort output* * Graphics specifications may vary between CPU types. Supports 4K@60Hz as specified in HDMI 2.1. * Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x USB Type-C, shared with DisplayPort graphic output
USB (s)	Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. * Specifications vary by CPU types. *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.
RAID	AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	5 x Audio jacks

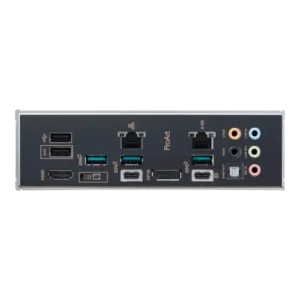

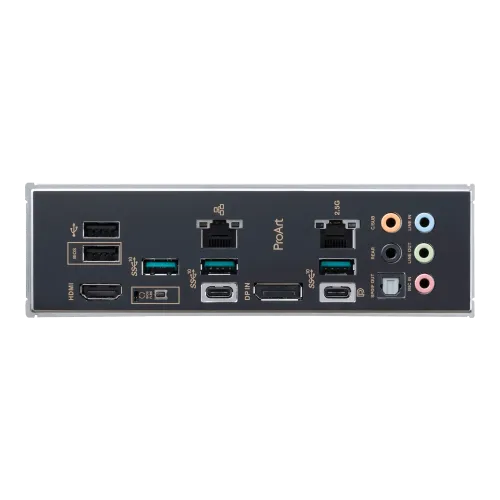

Internal I/O Ports	Internal I/O Connectors I/O ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button
Others
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – Safeslot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsinks – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – Aura RGB header – Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features – 24/7 Reliability – Overcurrent Protection Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support – Support: up to 60W charging* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
Bundled Software	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) CreationFirst Norton Anti-virus software (Free Trial version) ProArt Creator Hub WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 Years
