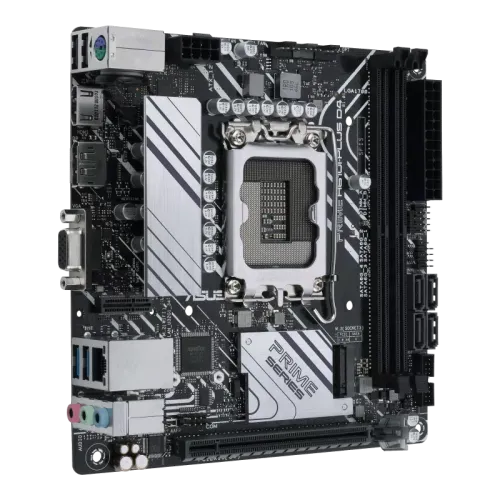

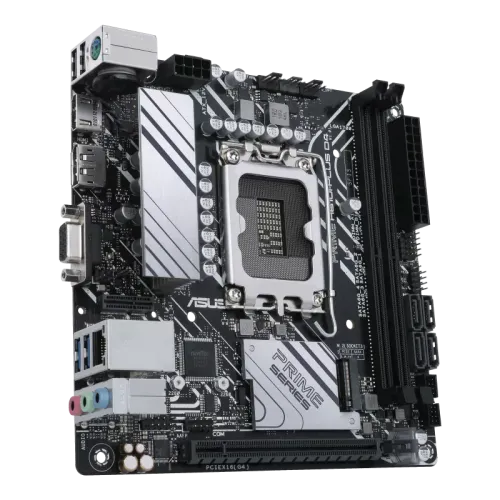

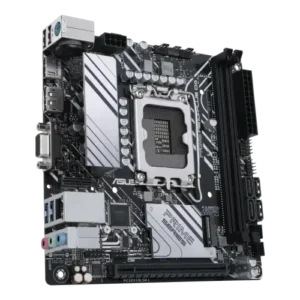

ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard

Original price was: ৳ 19,250.Current price is: ৳ 17,500.

Key Features

Model: PRIME H610I-PLUS
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB 3200
Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub
Features: 1 x Realtek 1Gb Ethernet

Chat Through WhatsApp

Category: ASUS (Intel)

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H610 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Dedicated audio PCB layers
Expansion Slots
PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot
M.2 Socket	1 x M.2 slots
Memory
Type	DDR5
Slots	2x DIMM
Supported Memory	5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 96GB
Graphics
Graphics	Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1

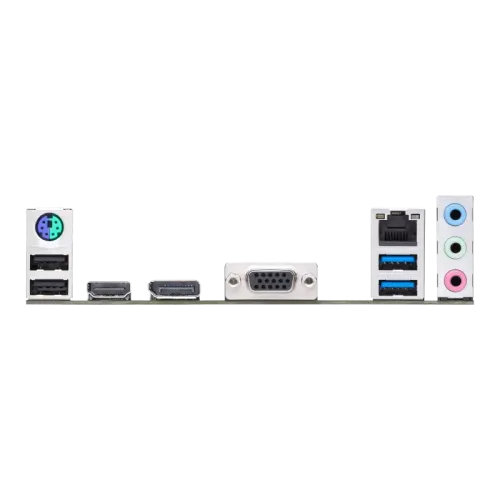

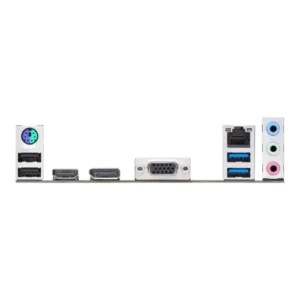

Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
VGA (s)	1 x VGA port
USB (s)	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s)	1 x Intel 1Gb Ethernet port
Wireless Communication module	M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Supported Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Audio	3x Audio jacks
Internal I/O Ports	Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Others
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Aluminum heatsink design
Warranty Information
Manufacturing Warranty	3 years warranty

Introducing the ASUS Prime H610i-Plus

The ASUS Prime H610i-Plus DDR5 Mini ITX motherboard brings unparalleled performance to compact builds. Designed for the latest Intel processors, it supports cutting-edge DDR5 memory to enhance your computing experience.

Key Features and Benefits

With robust power delivery and numerous connectivity options, the H610i-Plus is perfect for gamers and professionals alike. Its Mini ITX form factor maximizes space, allowing for innovative and streamlined designs. The board features multiple USB ports, HDMI output, and premium audio components.

Upgrade Your System Today

Whether you’re building a new PC or upgrading an existing one, the ASUS Prime H610i-Plus DDR5 motherboard ensures reliability and performance. Experience next-generation speed and efficiency with this impressive motherboard option.
