ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard

Original price was: ৳ 11,000.Current price is: ৳ 10,000.

Key Features

Model: H610M-H2/M.2
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supports: Up to DDR4 3200MHz
Graphics Output: 2x HDMI
Features: Realtek ALC897 7.1 CH HD Audio Codec

Chat Through WhatsApp

Category: ASRock (Intel

Specification

Basic Information
Supported CPU	– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology
Chipset	Intel H610
BIOS	– 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor	– Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI	– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 3.0 x1 Slot (PCIE2)*
M.2 Socket	– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	2 x DDR4 DIMM Slots
Supported Memory	– Supports DDR4 non-ECC, un-buffered memory up to 3200 – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel® Extreme Memory Profile (XMP) 2.0
Maximum Memory	64GB
Graphics
Graphics	– Intel® Xe Graphics Architecture (Gen 12) – 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

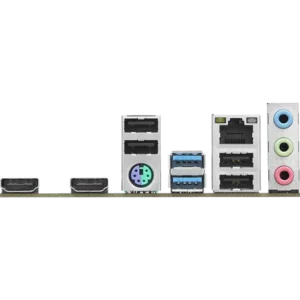

Connector & Ports
HDMI	2 x HDMI Port
USB (s)	– 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) – 6 x USB 2.0 (4 Rear, 2 Front)
LAN Port (s)	– Gigabit LAN 10/100/1000 Mb/s – Realtek 8111H
Supported Storage	– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disks
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Internal I/O Ports	1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)* CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto-detect if 3-pin or 4-pin fan is in use.
TPM (Trusted Platform Module )	– 1 x SPI TPM Header
Others
Bundled Software	– ASRock Motherboard Utility (A-Tuning) UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash
Warranty Information
Manufacturing Warranty	3 years

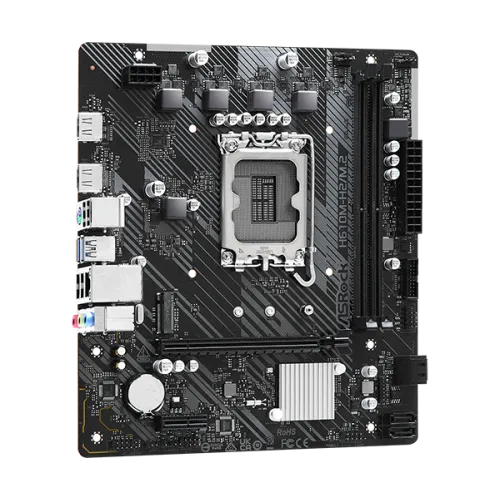

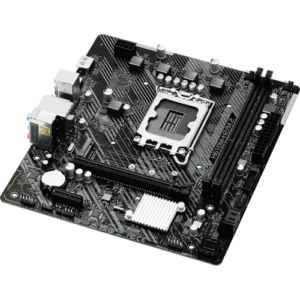

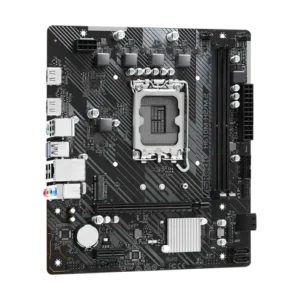

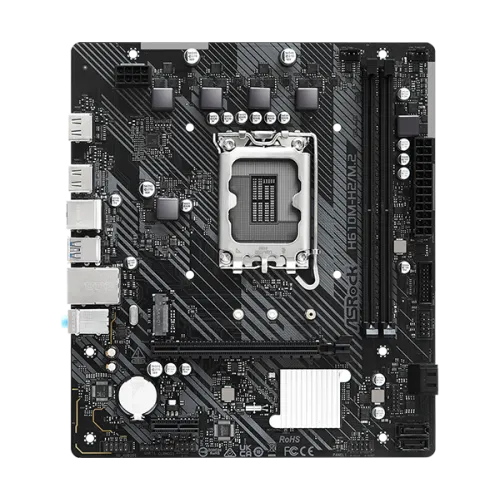

Overview of the ASRock H610M-H2/M.2 Motherboard

The ASRock H610M-H2/M.2 is a versatile motherboard engineered to support 14th, 13th, and 12th generation Intel processors. This Micro-ATX board is optimized for performance, making it an excellent choice for both casual gamers and productivity enthusiasts.

Key Features

Equipped with DDR4 memory slots, this motherboard provides a reliable boost in speed and efficiency. Its compact design does not compromise on connectivity, offering M.2 slots for rapid data transfer along with ample USB ports for peripherals.

Why Choose the ASRock H610M-H2/M.2?

This motherboard combines quality construction with advanced features, ensuring stability and longevity. Upgrade your PC experience with the ASRock H610M-H2/M.2, where performance meets value.
