ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard
Original price was: ৳ 26,180.৳ 23,800Current price is: ৳ 23,800.
Key Features
- Model: B650M Pro RS WiFi
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 256GB, 7200+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm – 2oz Copper PCB |
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
|
| Expansion Slots | ||
| PCI | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™ – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | – 4 x DDR5 DIMM Slots | |
| Supported Memory | – Dual Channel DDR5 Memory Technology – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Maximum Memory | Max. 256GB | |
| Graphics | ||
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | – 1 x USB 3.2 Gen2 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen1 Type-C (Front) – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front) |
|
| LAN Port (s) | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
|
| Wireless Communication module | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band* support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 + High speed class II – Supports MU-MIMO |
|
| Supported Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors |
|
| RAID | – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 3 x Audio jacks | |

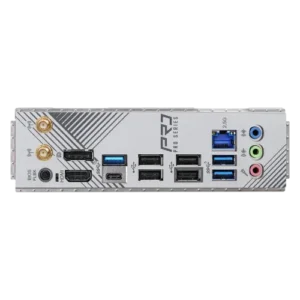

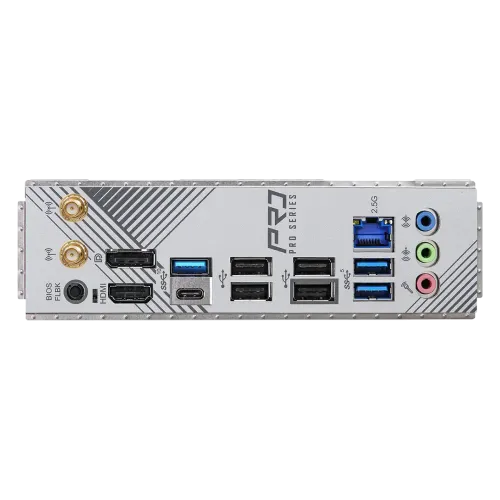

| Internal I/O Ports | Rear Panel I/O – 2 x Antenna Mounting Points – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 2 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / MicrophoneConnector – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
| TPM (Trusted Platform Module ) | – 1 x SPI TPM Header | |
| Others | ||
| Special Features | Superb Productivity – PCIe Gen5 (M.2) – Dual Channel DDR5 Rock-Solid Durability – 8+2+1 Power Phase, 50A Dr.MOS – Pre-Installed I/O Shield Ultrafast Connectivity – 2.5G LAN EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer |
|
| Bundled Software | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
Overview of ASRock B650M Pro RS WiFi
The ASRock B650M Pro RS WiFi AM5 Micro ATX motherboard is designed for high-performance computing. Featuring the advanced AM5 socket, it supports the latest Ryzen processors, ensuring fast and efficient processing power.
Key Features
This motherboard includes built-in WiFi, several USB ports, and support for DDR5 memory. Its micro ATX form factor makes it ideal for compact builds, while maintaining impressive expansion options for future upgrades.
Connectivity Options
Equipped with multiple connectivity options, the ASRock B650M Pro RS WiFi motherboard allows for seamless integration with a variety of peripherals. Whether for gaming or professional applications, this motherboard delivers reliability and performance.
| RAM Type | DDR5 |
|---|---|
| BRAND | ASRock |
