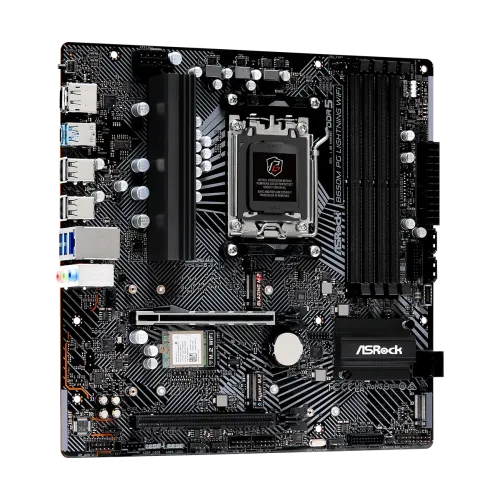

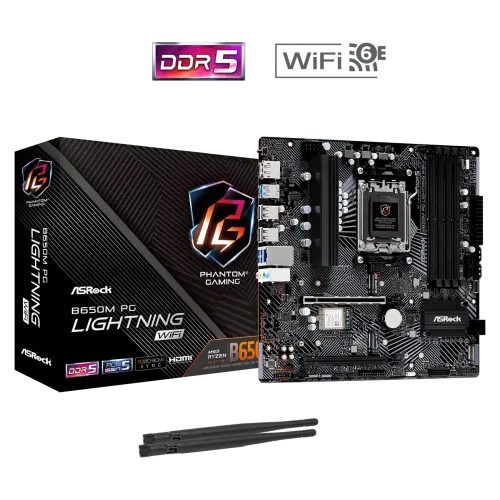

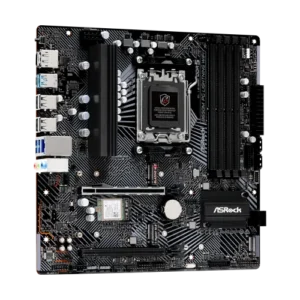

ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard

Original price was: ৳ 22,880.Current price is: ৳ 20,800.

Key Features

Model: B650M PG Lightning
Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, 7200 +(OC), Max 256GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Chat Through WhatsApp

Category: ASRock (AMD)

Specification

Basic Information
Supported CPU	– Supports AMD Socket AM5 Ryzem 9000, 8000 and 7000 Series Processors
Chipset	AMD B650
BIOS	– 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor	– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
Expansion Slots
PCI	CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode Chipset: – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Memory
Type	DDR5
Slots	4x DIMMs
Supported Memory	– Dual Channel DDR5 Memory Technology – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory	256GB
Graphics
Graphics	Integrated AMD RDNA graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
HDMI	1 x HDMI Port
Display Port (s)	1 x DisplayPort 1.4
USB (s)	– 1 x USB 3.2 Gen2 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen1 Type-C (Front) – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Phantom Gaming LAN Software – Smart Auto Adjust Bandwidth Control – Visual User-Friendly UI – Visual Network Usage Statistics – Optimized Default Settings for Game, Browser, and Streaming Modes – User Customized Priority Control
Wireless Communication module	– 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band* support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 + High speed class II – Supports MU-MIMO
Supported Storage	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors
RAID	– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone

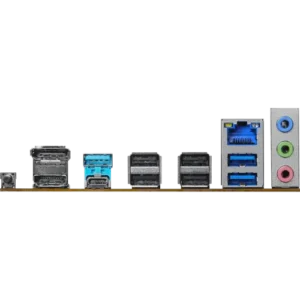

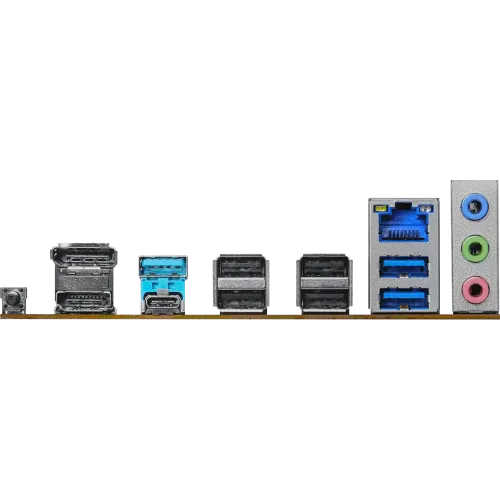

Internal I/O Ports	Rear Panel I/O – 2 x Antenna Mounting Points – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 2 x USB 3.2 Gen1 Type-A Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / MicrophoneConnector – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module )	– 1 x SPI TPM Header
Others
Special Features	Superb Productivity – PCIe Gen5 (M.2) – Dual Channel DDR5 Rock-Solid Durability – 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity – 2.5G LAN EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer
Bundled Software	Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Phantom Gaming LAN Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash
Warranty Information
Manufacturing Warranty	3 Years

Unleashing Performance

The ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard is engineered for high-performance computing. Designed to support the latest AM5 processors, it ensures a robust foundation for your system, optimizing speed and efficiency.

Advanced Connectivity

This motherboard is equipped with integrated WiFi, allowing seamless connectivity for online gaming and streaming. With multiple USB ports and PCIe slots, users can easily expand their systems and connect various devices without hassle.

Aesthetic Design

Not only does the ASRock B650M PG Lightning offer exemplary performance, but it also features a sleek design. The LED lighting accents enhance the visual appeal of your build, making it a chic addition to any setup.

RAM Type	DDR5
BRAND	ASRock
